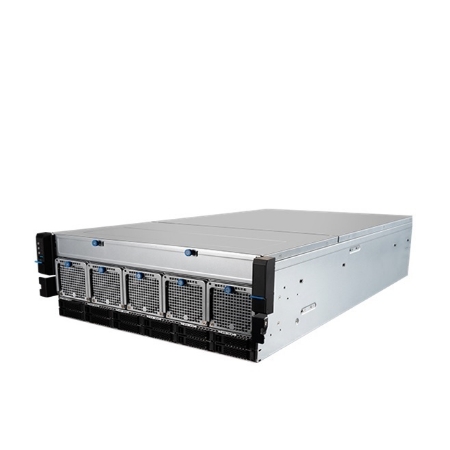

Picture of PolyAI 4U4G-E5

Picture of PolyAI 4U4G-E5

Picture of PolyAI 4U4G-E5

Picture of PolyAI 4U4G-E5

Picture of PolyAI 4U4G-E5

PolyAI 4U4G-E5 4U 4 GPU for AI Computing

AMD EPYC™ 9005 Turin, 4 Triple-Slot for GPU Card ,12 U.2 NVMe, 3000W CRPS , 12-channel DDR5, IPMI 2.0

Featured Highlights
	AMD EPYC™ 9005/9004 Series processor with AMD 3D V-Cache™ Technology, up to TDP 500W
	AMD Turin
	Up to 4 x NVIDIA RTX PRO™ 6000/5000/4500, H100, H200 Dual Slot GPU Cards
	12 x DDR5 DIMM Slots, 1x DPC, RDIMM/RIMM-3DS
	12x Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
	4 x PCIe 5.0 x16 FHFL slots, 2x PCIe 4.0 x16 FHFL slots (x8 signal) FHFL Slots
	PCIe 4.0 x8 LAN Cards
	2 x USB 3.2, 1 x Type-A, COM
	1+1 Redundant 3000W CRPS 80PLUS Platinum
	Applications: GPU for AI, Deep Learning, HPC.

SKU: 4U4GPU12N-E5

Specifications
Request for Info

Product specifications

Processor • Single AMD EPYC™ 9005/9004 Series processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 500W Chipset • AMD Turin
Memory • 12 x DDR5 DIMM Slots, 1DPC, RDIMM/RIMM-3DS • Max. Frequency 6000MT/s(1DPC) • Max. Capacity per DIMM: RDIMM: 96GB, RDIMM-3DS: 256GB Graphics • (1) VGA D-Sub Port
GPU • Up to 4 x NVIDIA® RTX PRO™ 6000/5000/4500, H100, H200 Dual Slot GPU Cards • Support up to 4 x NVIDIA® RTX™ 5090/5080 Triple-slot Graphics Cards Storage • 12 Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays • 1 M.2 2280/22110 PCIe 3.0 x4 port • 1 M.2 2280/22110 PCIe 3.0 x2 port
Expansion Slot • 4 PCIe 5.0 x16 FHFL slots • 2 PCIe 4.0 x16 FHFL slots (x8 signal) FHFL Slots Network • By PCIe 4.0 x8 LAN Card
Rear I/O • 1 1000Base-T Dedicated Server Management Port • 2 USB 3.2 Gen 1 Type-A Port • 1 VGA D-Sub Port • 1 COM RJ45 Port • 1 UID LED Button • 3 Status LEDs : Power/M.2/Fault Other I/O • (12) Hot-swap 2.5” drive bays • (1) USB 3.2 Gen 1 Type-A Port • (1) System Power LED Button • (1) UID LED Button • (1) Reset Button • (4) Status LEDs : M.2/Fault/LAN
Management • ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API • Dual BMC • 1 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) Chassis • 4U 438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D • 1 Liquid cooling module for max. 500W CPU • 5 8038 Easy-Swap chassis fans
Power Supply • (1+1) Redundant 3000W CRPS 80PLUS Platinum • Dimension (WxHxL): 73.5 x 40 x 265 mm • AC Input: 100-127Vac, 14A, 50-60Hz • Output: Max 1200W, DC +12V/100A, +12Vsb/3A • AC Input: 200-240Vac, 16A, 50-60Hz • Output: Max 2800W, DC +12V/233A, +12Vsb/3A • AC Input: 220-240Vac, 16A, 50-60Hz • Output: Max 3000W, DC +12V/250A, +12Vsb/3A • C19 power cords are required, and both US and EU power cords are included in the accessories Environment* • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing) • Operating Relative Humidity: 10% to 80% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
