Processor
• Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) • Supports Intel® Hybrid Technology • Supports Intel® Turbo Boost Max 3.0 Technology • Supports Intel® Thermal Velocity Boost (TVB) • Supports Intel® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration
Chipset
• Intel® Z890 Chipset
|
Graphics
• Intel® Xe LPG Graphics Architecture • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz • 2 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz ( Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports two 4K displays or one 8K display, Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. )
Memory
• 4 x DDR5 DIMM, supports up to 256GB
• 5600MHz DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Supports Intel® Extreme Memory Profile (XMP) 3.0x
|
Network
• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s • Dragon RTL8125BG • Supports Dragon 2.5G LAN Software • Smart Auto Adjust Bandwidth Control
Expansion Slot
• 1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4)
• 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0 x4+x4)
• 2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
|
Storage
• 1 x M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280 lengths)
• 3 x M.2 slots (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths)
• 4 x SATA 6Gb/s ports
• 1 x SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s)
• Intel® Rapid Storage Technology supports NVMe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|

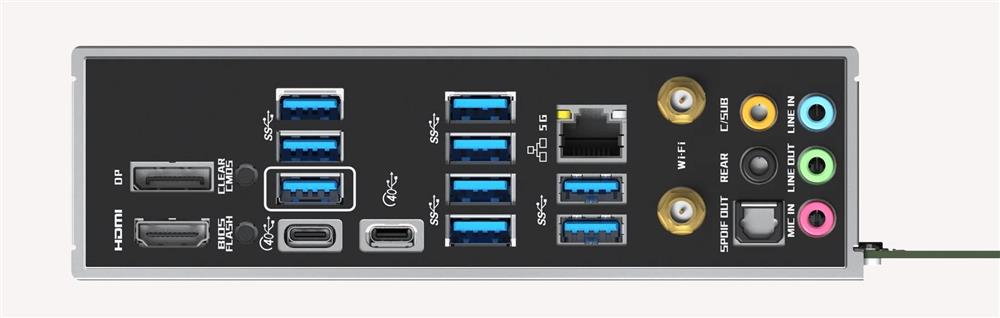

Back Panel I/O
• 1 x HDMI Port • 1 x DisplayPort 1.4 • 2 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) • 9 x USB 10G Type-A ports • 1 x RJ-45 LAN Port • 1 x BIOS Flashback Button • HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0 headers
|
System BIOS
• 256Mb AMI UEFI Legal BIOS with GUI support
|

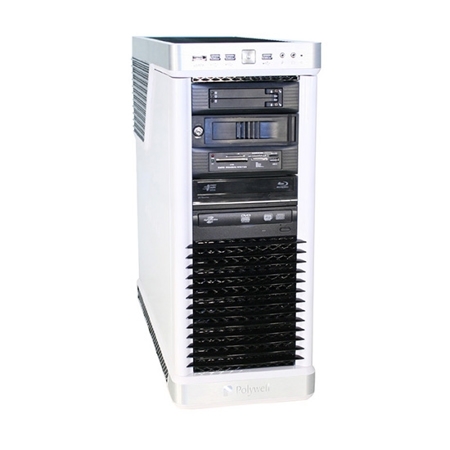

Chassis
• TS900W 9-Bay ATX Tower • Drive Bay: 9 External 5.25" (convertible to 15 x 3.5" Swap bays) • Slot: 7 (supports double slot add-on card) • Cooling: Quiet and Cool 120mm Fans Cooling • Dimension: 210 (W) x 510 (H) x 549 (D) mm, 8.26" (W) x 20" (H) x 21.6" (D) inch • 500W, 600W, 700W, 850W, 900W, 1000W, 1250W or 1500W AC Power Supply 100-240V Switchable, FCC, CE, UR Certified • 80 Plus High Efficiency Active PFC with 140mm Quiet Fan
Power Supply
• Power: 90V-240V 300W or higher wattage AC Power Supply (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 10/11, IoT, Linux
Applications
• Digital Signage, Surveillance, AV Player, High-end Gaming, etc.
|
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
