Processor
• Intel® Core™ Ultra Processors (Series 2) (LGA1851) • Intel® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Intel® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W) • Supports Intel® Hybrid Technology • Supports Intel® Turbo Boost Max 3.0 Technology • Supports Intel® Thermal Velocity Boost (TVB) • Supports Intel® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration
Chipset
• Intel® W 880 Chipset (Supports Arrow Lake Family)
|
Graphics
• Intel® HD Graphics • 4 x HDMI 2.0 4096x2160 60Hz • 1 x VGA 1920x1080@60Hz
Memory
• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 192GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0x
|
Network
• 2 x Intel ®I210AT 1GbE PXE
• 1 x Intel ®I226LM 2.5GbE Supports vPRO / PXE
Expansion Slot
• 2 x PCIe 5.0 x16 Slot (x8 Signal）
• 4 x PCIe 4.0 x4 Slot
• 1 x PCI
|
Storage
• 4 x SATA3.0 6Gbps, supports RAID 0,1,5,10 • 1 x M.2-2280 Key-M NVME PCIE5.0 X4 SSD(M2_NVME1) • 1 x M.2-2280 Key-M MVME PCIE4.0 X4 SSD(M2_NVME2)

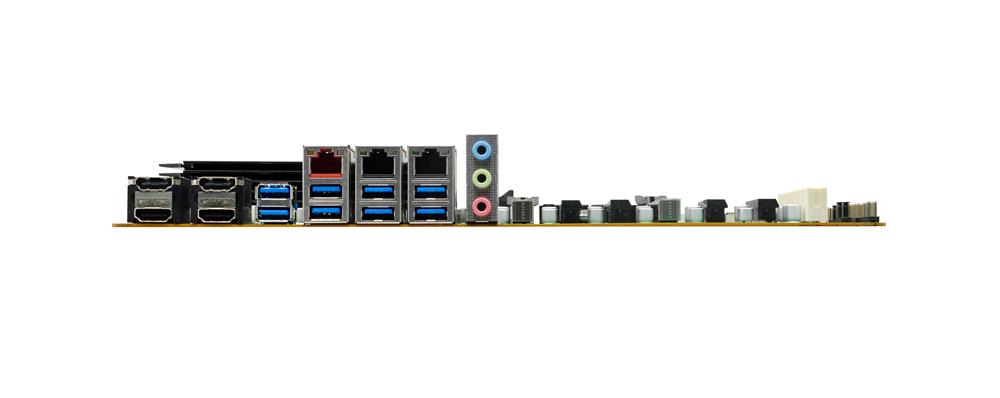

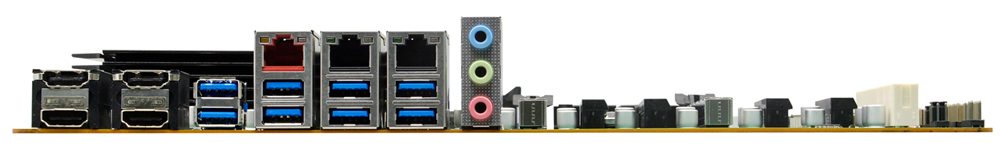

Back Panel I/O
• 8 x USB3.0, supports 2A Power • 3 x RJ-45 Ethernet LAN Ports • 3 x 3.5mm Audio jacks for LINE-OUT/MICK/LINE-IN • 4 x HDMI 2.0
|
Internal I/O
• 2 x USB2.0 Headers 2*5pin， • 1 x vertical USB2.0 Type-A • 1 x JVGA Header，1*12pin • 2 x USB3.0 Headers 2*10pin • 1 x Front Audio (2*5pin） • 2 x Front Panel Control LED/Switch (2*5pin) • 1 x 24pin ATX Power-in • 2 x 8pin ATX DC-in • 1 x TPM Header 2*6pin • 6 x RS232 Serial Header，2*5pin,COM1/2 for 9pin with power, supports RS485/422 • 1 x LPT Printer Port 2*13pin
System BIOS
• 128Mb AMI UEFI Legal BIOS with GUI support
|

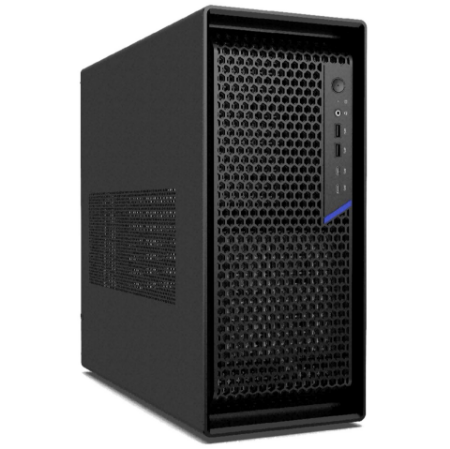

Chassis
• Dimension: 430mm (D)x 182mm (W) x 419 mm (H) • Drive bay: 2 x 3.5", 1 x 2.5" Internal bays, 4 x Expansion slots
|
Power Supply
• Power: 1 x 1200W ATX Power Supply (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option
OS Support
• Windows 10/11, IoT, Linux, FreeBSD
|
Applications
• High-End Gaming, AI-IoT, Surveillance, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
