Processor
• Dual Intel® Xeon® Processor E5-2600 V4 Series • Intel® C612 Chipset
Memory
• 32GB Quad-Channel ECC DDR4 system memory • Optional: up to 3TB system memory, 24 DIMM Sockets
|
OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager • Optional: Red Hat Ceph ,Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard • Optional: ZFS, NTFS, or any file system supported by the x86 platform
|
Network I/O
• 4 Ethernet ports : 2 x 10Gbit SFP+, 2 x Gigabit RJ45 copper ports • Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed) • EDR or FDR Infiniband supported
Network Service
• DHCP client/server (default is DHCP client/static) • Network Protocol: CIFS/SMB, NFS, FTP • iSCSI / NAS / SAN (Can be mixed)
|
Management Interface
• Web GUI • E-mail notification • Local Host Access via VGA and Keyboard
Expansion
• 2 x PCIe 3.0 x16 slots (Low Profile) • 1 x PCIe 3.0 x8 slot • 1 x PCIe 3.0 x8 slot for SAS3 Add-in-module • 1 x LAN Module slot for Flexible Networking Module Options.
|
Remote Boot Function
• Requires NIC with PXE support on client
File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
|
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
Storage/RAID
• Hardware accelerated RAID controller, PCIe 3.0 16x bus • High performance sustained read and write. Unparalleled performance • Over 8,000MB/sec random write and 3,500MB/sec random read • 48 x 2.5" hot-swap drive bays for SSD/SAS/SATA 4TB, 2TB, 1TB Drive • Optional: 1 Internal 2 x 2.5" RAID drives for OS. • RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
|
I/O Ports
• 3x USB 3.0 (2 rear, 1 Type A) connectors • VGA graphics • 4 x NVMe PCIe 3.0 x4 ports • 4 x SATA-6G/s RAID port, 2 DOM (Disk on Module) ports • 2 additional I/O (2COM, 1 TPM)
Client Support
• MS Windows® 10, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac • Snap Shot Backup and Recovery Client Support • Active Directory, Rsync are supported
|
Remote Controls
• Power on/off, system reset + USB • IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
|
Cooling
• 5 x 8cm high-performance PWM cooling fans
Power Supply
• 1620/1200/1000W 2+1 redundant power supply • 80 Plus Platinum class, UR/FCC/CE Certified
|
Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
Non-Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
|
Operating Humidity
• From 10% to 90% relative humidity
|

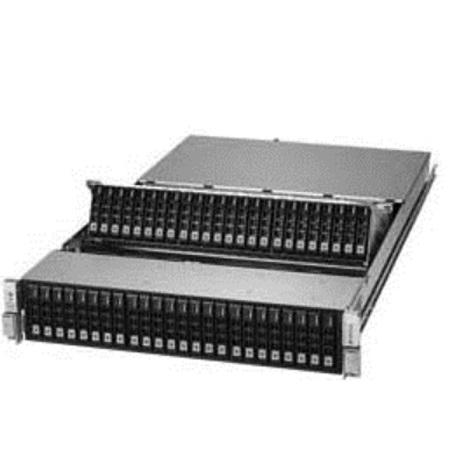

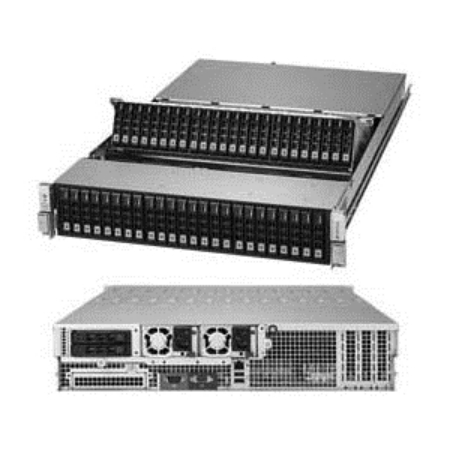

Chassis
• 2U Rackmount Chassis • 48 x 2.5" NVMe front hot swap bays • 2 x rear 2.5" hot-swap SAS/SATA/SSD OS drive bays • Dimensions: 17.2" W x 3.5 H x 30.2" D (35.2" with cable management ARM installed). • Weight: 100 lb.
Warranty
• NVMe SSD carries 5 year • Base system:3 year standard parts and depot labor;lifetime toll free phone support. • Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service. • Optional:7+year extended warranty service available. • On-site service is available with additional cost.
|
