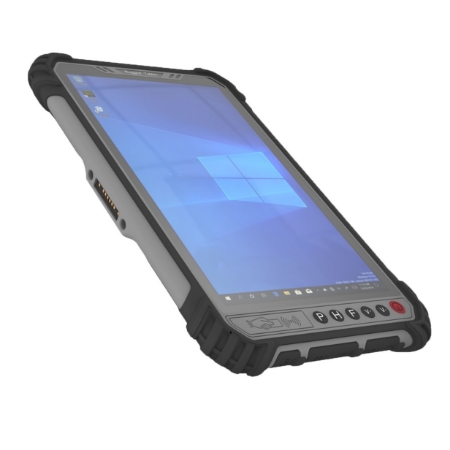

RT809S

8 Inch, Intel® I5-8200Y /Celeron N5100 Tablet with NFC + Fingerprint Reader, SIM, Micro card
Featured Highlights
  Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz
  Intel® Amber Lake Y Platform (SOC)
  Intel® UHD Graphics 615
  8 GB Memory, ROM 256GB SSD
 Expansion Module: RJ45, DB9, USB2.0, QR Scanner
  3 USB 3.0, 1 Type-A, Mirco SD and SIM card readers
  USB HD Audio Sound
  AC100V-240V, 50Hz/60Hz, DC19V/3.42A (UL/CE/FCC Certified)
  OS Support: Windows 10 Pro (Home, IoT) 64bit, Linux, FreeBSD
  Applications: POS/Kiosk, Business Computing, Thin Client, etc.




SKU: NB04-08RS809T
Product specifications
Processor

•  Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz

Chipset

• Intel®  Amber rLake Y series SOC

Memory

• DDR3L 8GB up to 16GB

Video Output

• 8 inch IPS 1920 x 1200 FHD

Graphics

• Intel® UHD Graphics 615
• 1 x  HDMI® Type-A

Expansion capabilities

• Optional Module:
• Fingerprint Acquisition
• 2D Scanner
• High Precision GPS
• UHF RFID

Storage

• 256G SATA SSD

Audio

• HD Audio

Network

• 802.11ac/n/g Dual frequency 2.4G+5G WiFi
• BT 4.2

I/O

• Camera (Front 5.0M+ Rear 13.0M Auto Focus )
• 1 x Mirco SD Card Reader
• SIM Card Slot
• 1 x RJ45
• 1 x HDMI Type-A
• 3 x USB 3.0
• 1 standard earjack

Environment

• Working temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge
• Humidity: 95% Non-Condensing

Chassis

• Dimensions: 234×144×16mm
• Weight: 2 lb.

Power Supply
• Built in Lithium-ion polymer battery, 7.6V/5000mAh
OS Support

• Windows 10,  IoT, Linux,
• Customization service is available

Applications

• POS/Kiosk, Business Computing, Thin Client, etc.

*
*
*
Product specifications
Processor

•  Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz

Chipset

• Intel®  Amber rLake Y series SOC

Memory

• DDR3L 8GB up to 16GB

Video Output

• 8 inch IPS 1920 x 1200 FHD

Graphics

• Intel® UHD Graphics 615
• 1 x  HDMI® Type-A

Expansion capabilities

• Optional Module:
• Fingerprint Acquisition
• 2D Scanner
• High Precision GPS
• UHF RFID

Storage

• 256G SATA SSD

Audio

• HD Audio

Network

• 802.11ac/n/g Dual frequency 2.4G+5G WiFi
• BT 4.2

I/O

• Camera (Front 5.0M+ Rear 13.0M Auto Focus )
• 1 x Mirco SD Card Reader
• SIM Card Slot
• 1 x RJ45
• 1 x HDMI Type-A
• 3 x USB 3.0
• 1 standard earjack

Environment

• Working temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge
• Humidity: 95% Non-Condensing

Chassis

• Dimensions: 234×144×16mm
• Weight: 2 lb.

Power Supply
• Built in Lithium-ion polymer battery, 7.6V/5000mAh
OS Support

• Windows 10,  IoT, Linux,
• Customization service is available

Applications

• POS/Kiosk, Business Computing, Thin Client, etc.
