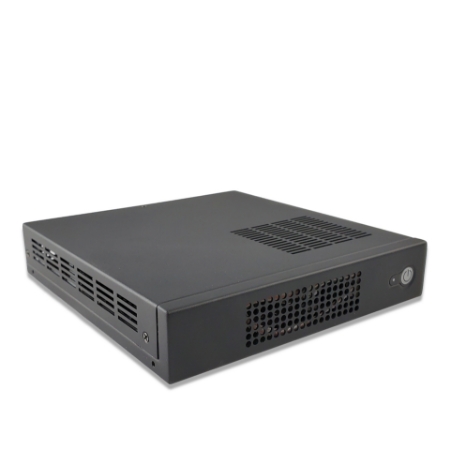

Q870AEL2 - Arrow Lake-S Edge AI Entertainment PC

Core Ultra Series 2 Arrow Lake-S, 3 x Display HDMI+DP+LVDS/eDP, 3 x M.2, PCIe5.0 x16, vPro

Featured Highlights
	Intel® 15th Gen (Arrow Lake-S) LGA1851 Core™ Processors Core Ultra 9/7/5, TDP Max. 65W
	Intel® Q870 Chipset (vPro)
	Intel® Xe LPG Graphics
	2 x SO-DIMM, DDR5 6400MHz for up to 192GB
	2 x SATA3.0, 2 x M.2 NVMe/SATA
	2.5 GbE LAN + 1 GbE LAN, SIM
	PCIe 5.0 x16 Slot, 4 x USB3.2 Gen2
	7.1 ALC888S Audio Codec
	Power Supply: DC-in 12–26V / 19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11 64-bit, Linux
	Applications: AI Edge, Digital Signage, Entertainment PC, Audio/Video PC, AI-IoT, High-end Gaming, etc.

SKU: Q870AEL2

Specifications
Request for Info

Product specifications

Processor • Intel^® Core™ Ultra Processors (Series 2) (LGA1851) • Intel^® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Supports Intel^® Hybrid Technology • Supports Intel^® Turbo Boost Max 3.0 Technology • Supports Intel^® Thermal Velocity Boost (TVB) • Supports Intel^® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration Chipset • Intel® Q870 Chipset
Memory • 2 x SO-DIMM DDR5 6400MHz unbuffered non-ECC Dual Channel I/O • Supports up to 192GB Graphics • Intel® Xe LPG Graphics Architecture • 1 x HDMI 2.1 port, max. Up to 8K (7680 x 4320) @60 Hz • 1 x DisplayPort 2.1 max. Up to 8K (7680 x 4320) @60 Hz • 1 x eDP (Option) max. resolution Up to 5120 x 3200 @60 Hz • 1 x LVDS max. resolution Up to 1920 x 1200 @60 Hz
Network • 1 x Intel® I226V 2.5 Gigabit LAN • 1 x Intel® I219-LM Gigabit (10/100/1000 Mb/s) LAN • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 E Key with CNVi Support (PCIe x1 & USB2.0) • 1 x M.2 2280 M Key (NVNe with PCIe x4, SATAIII) • 1 x M.2 2242/3042/3052 B Key (PCIe x1, SATAIII, USB2.0) • 1 x PCIe5.0 x16
Storage • 2 x SATAIII 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe) • 1 x M.2 2242 (for SATA-6Gb/s SSD ) • Supports SATA RAID 0,1,5,10 Audio • ALC888S; Nuvoton NCT6126D • 1 x Speaker 2W 4-pin header with amplifier • 1 x Audio Header (Front Panel Mic-in & Line-out)
Back Panel I/O • 4 x USB3.2 Gen2 • 1 x HDMI 2.1 • 1 x DisplayPort 2.1 • 2 x RJ45 LAN port • 1 x Mic-in, 1 x Line-out Internal I/O • 1 x LVDS Header, 1 x Backlight Header; 1 x eDP Header (Optional) • 2 x SATA III Connector, 1 x 5 pin SATA Power connector • 2 x USB 2.0 (1 x 2.54 pitch header) • 2 x USB3.2 Gen1 (1 x USB 3.2 header) • 1 x Speaker 2W 4-pin header with amplifier • 1 x Audio Header (Front Panel Mic-in & Line-out) • 1 x MiAPI Header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) • 1 x RS232/422/485 Header & 3 x RS232 Header • DC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 4-pin 19V • 1 x Front Panel Header; 2 x 4 pin Fan Header; Nano SIM slot

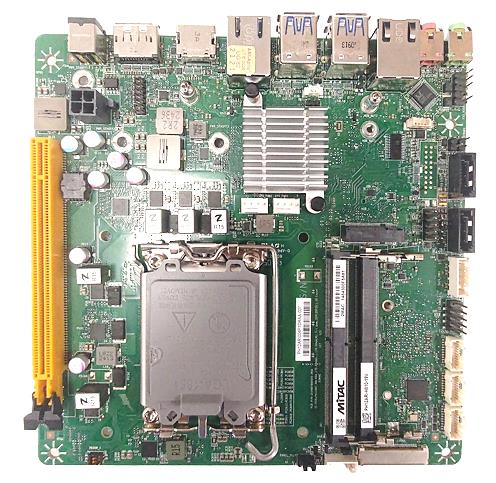

System BIOS • AMI® UEFI BIOS Systemboard • Small Form Factor Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) • Back I/O
Chassis • 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA/wall mount brackets • Option: 100F Fanless 1.4" Slim • Option: 400R with RISER Slot 400S Swap Bay 2x2.5" • Option: 1750C with slot • Option: 1750F Fanless with slot • Option: 236F3 Fanless Power Supply • Power: DC-in 12–26V / 19V Power Adapter (UL/CE/FCC Certified), DC-in 19V (5.1 mm ID / 7.4 mm OD) / ATX 4-pin 19V, • Option: DC-in 12–26V (4-pin power connector with 3-pin terminal block cable included in accessories). • Power Cord: Standard US power cord included, European and other regional Power cords are available as options. • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 64-bit, Linux Applications • Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, High-end Gaming, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
