| Featured Highlights |
 |
Drive Bays:4x5.25"/2xFD/1x3.5"HD |
|
Mainboard Size:12inch x 13inch |
|
Indicators:LEDs for Power ON/OFF, HDD, Fan & Alarm |
|
Switches:Power ON/OFF, System & Alarm Reset |
|
Cooling:Standard: 1x60mm. Optional: 3x80mm, 1x60mm |
|
Air Filter :Removable & Washable |
|
Security: Front Bezel |
|
Dimensions:19W x 5.25H x 27.1D(inch) |
|
Material: Front Bezel: Aluminum alloy |
| |
Handle: 1.2mm SECC Zinc-Coated Steel |
| |
Main Chassis:1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
|
Front Bezel:Standard: Black, Red, Blue, Silver, and Gold (Custom Available). |
| |
Main Chassis: Standard: Black. |
|
Front USB 2.0 x 2 Connector. |
| |

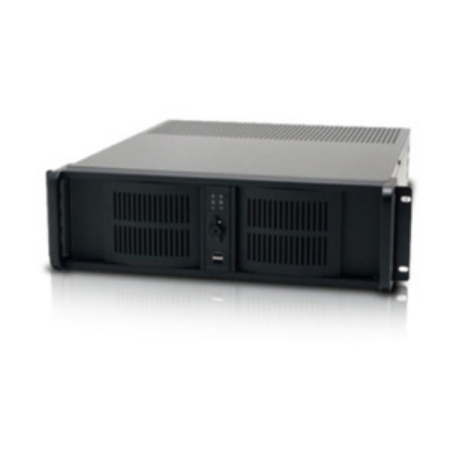

The 3U industrial rackmount chassis 3420BL. The full size back plane and width supports dual Intel and AMD CPU motherboard. It has excellent thermal solution with extra cooling fans. Optional 3.5 and 5.25 tray enable hot-swappable storage, raid configuration, and total storage capacity up to 6 storage drives provide your server or cluster maximum flexibility and performance. |
| |
