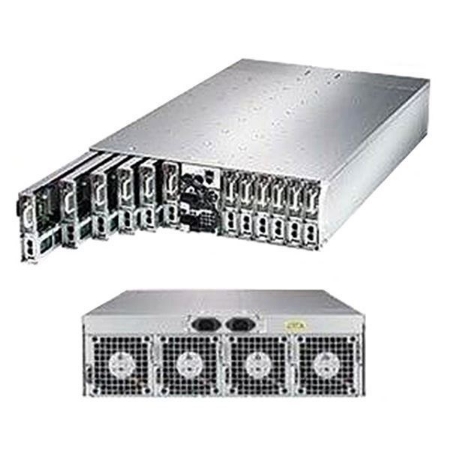

Picture of PolyCloud 3U12E3v5

PolyCloud 3U12E3v5

3U 12 x Xeon E3-1200v5 CPU Modules 2xLAN, 4xDDR4 4xSSD per CPU Module

Featured Highlights
•	Supports 12 systems (nodes) in a 3U Rackmount Unit.
•	Supports Xeon E3-1200 v5 Processors (per module)
•	Intel® C236 Chipset
•	4 DIMM, 64GB DDR4 2133/1866 MHz Reg. ECC per CPU
•	2 x 3.5" / 2.5" HD/SSD + 2 x M.2 NVMe per CPU Module
•	PCIe 3.0 8x Slot
•	Redundant Power Supply
•	I/O Ports (Per node)
	VGA, COM, 2xGbit LAN, 2 x USB 2.0 + 1 x USB 3.0 Ports
	1 dedicated LAN shares for 2 CPU IPMI 2.0 System management
•	Redundant 2000W High-efficiency (Platinum level) Power Supply
•	Design for ISP or DATA Center who needs optimized power and spacing to hold more servers
	at low over all cost, easy to manage, less cabling.

SKU: PolyCloud3U12E3v5

Specifications
Request for Info

Product specifications

Processor • 1151-pin LGA Sockets, Supports up to two Intel® 64-bit Xeon E3-1200 v5 series processor(s) • Option: 6th generation Core i3/Pentium/Celeron Processor (Skylake) • 4-Core / 8-Threads Xeon Processor, up to 80W per CPU • Can be mixing with different kind CPU per module acting as individual computer. Chipset • Intel® C236 chipset
Graphics • ASPEED AST2400 Graphics (BMC with Graphic controller) • VGA Port Expansion capabilities • 1 PCIe 3.0 x8 (micro low-profile) slot per module • 2 x M.2 NVMe PCIe x4 sockets for SSD
Memory Memory Capacity (Per CPU) • 4 x 288-pin DIMM sockets, Supports up to 64GB DDR4 2133/1866/1600MHz ECC Unbuffered DIMM • or Non-ECC unbuffered DIMM for Core i7/i5/i3 configuration. LAN • 2 x Intel i350AM2 Dual-Port Gigabit Ethernet Controller (2 port for each CPU) • 1 x Dedicated RJ45 port for IPMI 2.0 share per module
Storage • 4 x SATA-6Gb/s ports per CPU module • Supports RAID-0/1/5/10 I/O I/O ports (Per module through KVM) • 2 USB 2.0 + 1 USB 3.0 ports • 1x VGA Port • 1 serial Port • 3xRJ45 (2 for GigaLAN, 1 for IPMI) • 1 x TPM Header • 1 x DOM (Disk on Module) port
System BIOS • 128Mb SPI Flash EEPROM with AMI BIOS • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support Motherboard PolyCloud E3v5 MB (Total 12 CPU modules included)
OS Support • Windows Server 2012, 2008, 2000, Windows 8, 7, XP, Linux: CentOS, Ubuntu, FreeBSD Chassis • 3U12-Slot Chassis: • Supports up to 12 System Modules, each module with 2 x 3.5"/2.5" bay • Power Supply: 2000 Watt Redundant with Platinum Level High Efficiency • Dimensions: 17.5" (444.5mm)W x 29.5" (749.3mm)D x 5.21" (132.5mm)H • Weightl: 135 lbs • FCC, CE, CSA, UL Certified
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
