Think Big. Go Small. Eco-Smart Computing

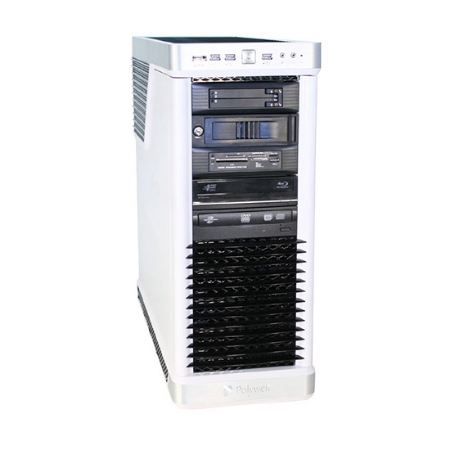

Poly X299E5

Core™ i9 Extreme processor, 4-Channel DDR4 up to 256G
5 PCIe x16 slots, 3 x M.2 + Dual Lan
Featured Highlights
Dimension: 21.6" (L) x 8.26" (W) x 20" (H)
Intel® Core™ i9/i7/i5 X-Series or Xeon™ CPU
Intel® X299 Chipset, Skylake-X/Kaby Lake-X
NVIDIA® SLI™ and AMD CrossFire™X Graphics
8 Quad Channel DDR4 up to 256GB Memory
5 PCIe x16, 3 x M.2, 2 x Intel® Optane™ memory
8 x SATA-III 6Gb/s (RAID 0, 1, 5, 10)
7.1 Audio Cinema 3
12 USB 3.1, 4 USB 2.0, Type-c Ports
Color: Black/White
SKU: PolyX299E5
Product specifications
Processor

• Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
• Core™ i9, i7, i5 Skylake-X, Kaby Lake-X, Cascade Lake-X Family up to 165W
• Up to 18 Cores 36 Threads: i9-10980XE, i9-10940X, i9-10920x, i9-10900X, i7-9800X series

Chipset
• Intel® X299 Chipset
Memory

•  Quad Channel DDR4 Memory Technology
• 8 x DDR4 DIMM Slots, up to 256G - Supports DDR4 4400+(OC)* / 2933 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

• 8 x DDR4 DIMM
• 2933/2666/2400/2133MHz unbuffered non-ECC (Quad Channel I/O)
• Supports up to 256GB
Graphics
• Up to 4 PCIe add-on Graphics Cards
Audio

• 7.1 CH HD Audio with Content Protection (Realtek® ALC1220 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• Nichicon Fine Gold Series Audio Caps
• 120dB SNR DAC with Differential Amplifier
• TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
• Pure Power-In
• Direct Drive Technology
• PCB Isolate Shielding
• Impedance Sensing on Front Out port
• Individual PCB Layers for R/L Audio Channel
• 15 Gold Audio Connector
• Supports Creative Sound Blaster™ Cinema 3

Storage

8 x SATA3 6.0 Gb/s Connectors, support RAID-0, 1, 5, 10 Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*

• 3 x Ultra M.2 Socket 2230/2242/2260/2280 (1 supports 22110 ) SATA3 6.0 Gb/s or NVMe Gen3 x4 (32 Gb/s)
• Supports Intel® Optane™ memory

LAN

•  1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
•  1 x Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2)
• Supports Wake-On-LAN - Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Internal I/O

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 1 x system fan/water cooling pump header
• 1 x 3 Amp fan/water cooling pump header
• 1 x I/O shield audio LED power connector
• 1 x digital LED strip extension cable header
• 2 x RGB (RGBW) LED strip extension cable headers
• 3 x M.2 Socket 3 connectors
• 8 x SATA 6Gb/s connectors
• 1 x Intel® VROC Upgrade Key header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 2 header
• 2 x USB 3.1 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x Thunderbolt™ add-in card connector
• 1 x Trusted Platform Module (TPM) header
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 1 x ECO button
• 1 x OC button
• 2 x temperature sensor headers

Back Panel I/O
• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 4 x USB 3.1 Gen 2 Type-A ports (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x RJ-45 ports
• 2 x MMCX antenna connectors (2T2R)
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Slots

• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
• Supports AMD Quad CrossFire™ X, 3-Way CrossFire™ X and CrossFire™ X
• Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™

BIOS

• 2 x 128Mb AMI UEFI Legal BIOS (1 x Main BIOS and 1 x Backup BIOS)
• Supports Secure Backup UEFI Technology
• ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support

Systemboard

Small Form Factor
Back I/O

OS Support

• Microsoft® Windows® 10 64-bit, Linux

Chassis

• TS900W 9-Bay ATX Tower
• 9 external 5.25" with Easy Front Removable Tray
• 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch

Power Supply 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration. ,
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
Application
• Set Top Box, Network Appliance, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
