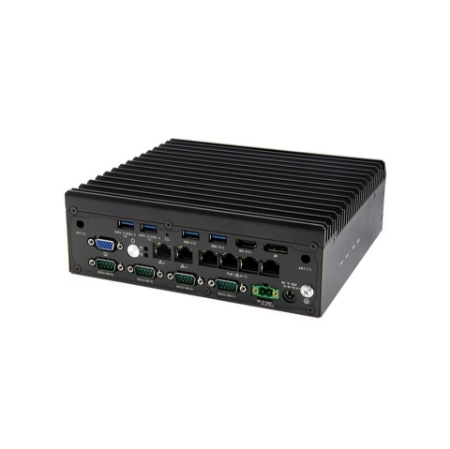

Nano-U12FL2+4PoE Edge AI with Tiger/Alder Lake

11/12th Gen. Tiger/Alder Lake, Iris® Xe GPU, HDMI 2.0+DP 1.4+VGA , 6 Gigabit Ethernet ports, 4 of which support POE

Featured Highlights
	Intel® 11th/12th Gen Core™ i7/i5 -u series Processor
	Intel® Iris® Xe Graphics eligible, DP 1.4 + HDMI 2.0 +VGA
	2 x DDR4 3200MHz SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe ,MSATA
	6 Intel I210AT Gigabit Ethernet, support 4 POE
	4 DB9 RS232/RS485
	4 USB 3.0, 2 USB 2.0
	1 Line out, 1 Mic
	DC 9-36V 60W Power Adapter(UL/CE/FCC Certified)
	OS Support: Windows 10/11, IoT, Linux
	Applications: Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, AI-IoT, Mini PC etc.

SKU: Nano-U12FL2+4PoE

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i7-1185G7 3.00/4.80GHz 4Cores 8Threads 12M 12/28W • Intel® Core™ i7-1165G7 2.80/4.70GHz 4Cores 8Threads 12M 12/28W • Intel® Core™ i5-1145G7 2.60/4.40GHz 4Cores 8Threads 8M 12/28W • Intel® Core™ i5-1135G7 2.40/4.20GHz 4Cores 8Threads 8M 12/28W Chipset • Intel® Tiger/Alder Lake-u Platform (SOC)
Graphics • Intel® Iris® Xe Graphics • VGA Graphics Port • DP 1.4 Graphics Port (40962304@60Hz) • HDMI® 2.0 Graphics Port (40962304@60Hz) Memory • 2 x DDR4 SO-DIMM • 3200/2667MHzMHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 6 x Intel® i211 Gigabit (10/100/1000 Mb/s) LAN (4POE, single port 15W) • 1 x M.2 for 5G-LTE Module Pair with SIM Card • Wake on LAN, PXE boot (Diskless) supported Expansion Slot* • 1 x M.2 for 5G-LTE Module Pair with SIM Card • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage • 1 x 2.5" SATA • 1 x MSATA • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe) Audio • 2 x 3.5mm analog stereo audio jack(Front) (For Microphone and Audio-Out)
Back Panel I/O • 1 x Power LED, 1 x CMOS reset key • 1 x DC-In Power Connecter • 6 x Intel I210AT Gigabit Ethernet (4 x POE, single port 15W) • 4 x USB 3.0 ports • 4 x DB9 RS232/RS485 • 1 x DP 1.4 (40962304@60Hz) • 1 x HDMI® 2.0 ports (40962304@60Hz) • 1 x VGA • 4 groups 6-digit dip switch，for RS232/RS485 selection (dip switch on bottom of chassis） • 1 x DC adapter port, 1x 2P phoenix connector (P=5.08mm), support DC 9~36V voltage input Other I/O • 2 x USB 2.0 ports (Front/White) • 2 x 3.5mm Audio jacks (Front)
Function • 1 x TPM Header System BIOS • AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported
Chassis • Slim Fanless enclosure 8.07"(W) x 7.56"(D) x 2.55"(H) (205 x 192 x 68mm) • Net Weight: 3lb (net) 6 lb.(gross with packaging) • Color: Black (other color and custom logo are available with MOQ orders) Power Supply • Power: DC9-36V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11, IoT, Linux Applications • Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, AI-IoT, etc.
Environment • Operating Temperature: -20 to +50C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
