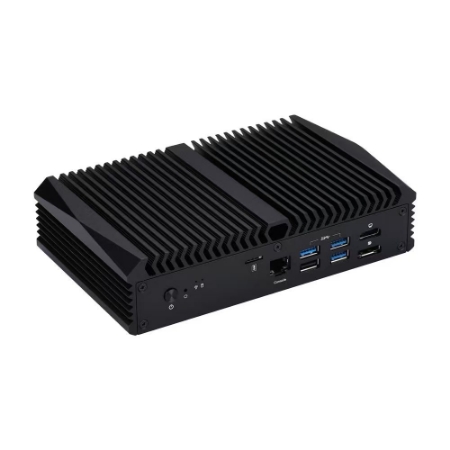

N100L4T2 Fanless Alder/Twin Lake-N Multi-LAN PC for Network Security

Alder Lake-N / Twin Lake-N, Intel UHD Graphics, 4 x 2.5GbE + 2 x 10GbE LAN, DDR5 up to 48GB, 5 x USB + Type-C, HDMI + DP + RJ45 Console Port, M.2 NVMe + optional 4G/5G.

Featured Highlights
	Intel® Alder Lake-N / Twin Lake-N Processor
	Intel® Alder Lake-N / Twin Lake Platform (SOC)
	Intel® UHD Graphics, HDMI + DP + Type-C DisplayPort
	1 x DDR5 SO-DIMM, supports up to 48GB Memory
	1 x M.2 2280 NVMe SSD, PCIe 3.0 x1
	2 x 10GbE + 4 x 2.5GbE LAN
	5 x USB + Type-C, RJ45 RS-232 Serial Console Port
	M.2 B-Key for optional 4G/5G modem + Nano SIM slot
	DC12V / 5A Power Adapter, 2.5mm DC-in
	OS Support: Linux, Windows
	Applications: Network Security, High-Speed Router, Firewall, VPN, SD-WAN, Edge Gateway

SKU: Nano-N100L4T2

N100L4T2

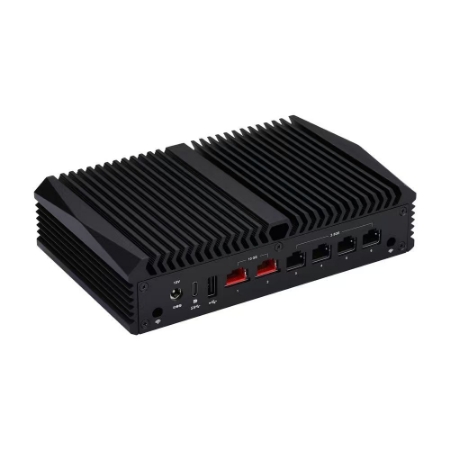

is a compact fanless multi-LAN PC designed for network security, firewall, routing, VPN, SD-WAN and edge gateway applications. It supports Intel Alder Lake-N / Twin Lake-N processors and features four Intel 2.5GbE LAN ports plus two Marvell 10GbE LAN ports for high-speed network connectivity. The system supports up to 48GB DDR5 memory, M.2 NVMe storage, optional 4G/5G connectivity, HDMI and DisplayPort video outputs, five USB ports plus Type-C, and an RJ45 serial console port. Its fanless aluminum enclosure and VESA mounting support make it suitable for continuous network appliance and edge deployment.

Specifications
Request for Info

Product specifications

Processor • Intel® Alder Lake-N Processor • Intel® N150 3.60GHz 4Cores 4Threads 6M 6W • Intel® N95 1.70/3.40GHz 4Core 4Threads 6M 15W • Intel® N97 3.60GHz 4Cores 6M 12W • Intel® N50 3.40GHz 2Cores 6M 6W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W • Intel Atom® x7213E 3.20GHz 2Cores 6M 10W • Intel Atom® x7211E 3.20GHz 2Cores 6M 6W • Intel Atom® x7425E 3.40GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N / Twin Lake platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz Memory • 1 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 16GB
Network • 4 x Intel® i225V/i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD) Audio • HD Audio
Back Panel I/O • 4 x LAN ports • 1 x HDMI® 2.0 port • 2 x USB 2.0 ports • 1 x DC-In Power Connecter Other I/O • 2 x USB 2.0 ports (Front) • 1 x Type-C USB 3.2 port (Front) • 2 x COM port (Front) • Optional: 1x RJ45 Serial Console port (Front) • 1 x SIM slot (Front)
Function • TPM 2.0 interface System BIOS • AMI® BIOS • Watchdog support
Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT Applications • High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: -10 to +60 C • Non operating temperature: -32 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
