Small Form Factor Storage

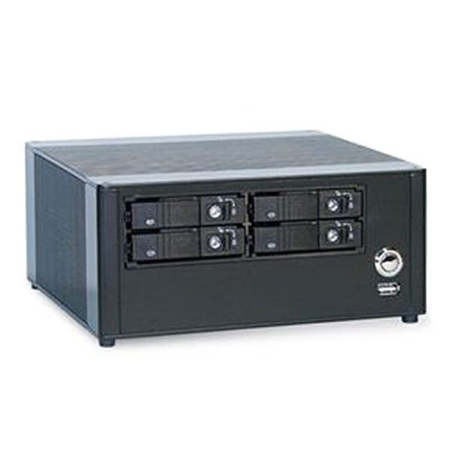

MiniStor 500D4

4 x hot swap NAS/iSCSI Small and quiet, Energy Saving High Performance System, Affordable Price
Featured Highlights
Data file sharing among Wnidows, Linux OS, and Macintosh users, with user name, passowrd protection,
 and managed access in local workgroups.
The backup and recovery application provides system backup, remote boot and recovery for Windows clients.
Can act as a Dynamic Host Configuration Protocol (DHCP) server.
Can act as a DHCP client for easy network configuration
Can be used as linear storage or set up as RAID 0, 1, 5, 6, 10, 50.
User-Friendly Web interface for setting up users and access rights.
• Built-in FTP server provides convenient high-speed file transfers.

MiniStor 500D4 is an intelligent network storage solution for small office, medium office, and home network environments, costing less than Windows file servers.



Start at Call for pricing Options(800-999-1278)
SKU: MiniStor 500D4
Product specifications
Processor

• Intel®2.4GHz 4-Core
Memory

• DDR3 4GB
OS and Storage Manager

• Linux/FreeBSD, (Optional Microsoft Home Server)
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Network I/O

• 2x Gigabit LAN port
Network Service
• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional), can be configured as mix with NAS and iSCSI
Management Interface

• Web GUI
• E-mail notification
• Rsync supported
Remote Boot Function

• Requires NIC with PXE support on client
File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)
Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"
I/O Ports

• 4x USB 2.0 connectors
Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac
Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators

• Power, Status LEDs
Power Supply

• 150W DC power supply
Operating Temperature

• From 5ºC to 45ºC (35ºF to 95ºF)
Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)
Operating Humidity



• From 10% to 90% relative humidity
EMI Safety

• CE/FCC
Dimensions

• 205(W) x 89(H) x 205(D)mm
• 8.1(W) x 3.5(H) x 8.1(D)inch
• 8kg (17.6 lb)
ServerFilter
Storage/RAID

• 4x 2.5" SATA-II/SATA-6G/s Hot-Swap Drive 1.0TB
• RAID 1, 0, 5 with Hot Spare supported or RAID-6
• 32GB with NAS and OS (Optional for MS HomeServer, MS Storage)
*
*
*
Product specifications
Processor

• Intel®2.4GHz 4-Core
Memory

• DDR3 4GB
OS and Storage Manager

• Linux/FreeBSD, (Optional Microsoft Home Server)
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Network I/O

• 2x Gigabit LAN port
Network Service
• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional), can be configured as mix with NAS and iSCSI
Management Interface

• Web GUI
• E-mail notification
• Rsync supported
Remote Boot Function

• Requires NIC with PXE support on client
File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)
Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"
I/O Ports

• 4x USB 2.0 connectors
Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac
Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators

• Power, Status LEDs
Power Supply

• 150W DC power supply
Operating Temperature

• From 5ºC to 45ºC (35ºF to 95ºF)
Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)
Operating Humidity



• From 10% to 90% relative humidity
EMI Safety

• CE/FCC
Dimensions

• 205(W) x 89(H) x 205(D)mm
• 8.1(W) x 3.5(H) x 8.1(D)inch
• 8kg (17.6 lb)
ServerFilter
Storage/RAID

• 4x 2.5" SATA-II/SATA-6G/s Hot-Swap Drive 1.0TB
• RAID 1, 0, 5 with Hot Spare supported or RAID-6
• 32GB with NAS and OS (Optional for MS HomeServer, MS Storage)
