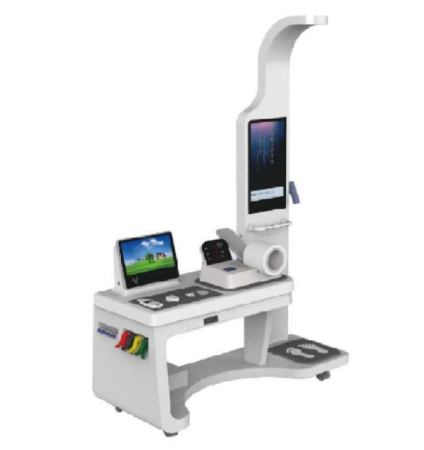

K5 Intelligent Self Services Health Check System

Health Management cloud service, Intelligent all-in-one health checking devices.
Featured Highlights
All-in-one design, easy maintenance, moving wheel.
Full voice guide operation, build account by ID or wechat.
15.6 inch operation screen + 23.8 inch display screen, display screen for advertising.
Capacity type touch panel.
HD camera.
Combine physical data and TCM.
Standard A4 size health report.
Size: 62.9(L)*23.6(W)* 90.5(H) Inch.
Support 3rd party cloud service.
  Functions: Self Services for measuring Height, Weight, BMI, Temperature, Electro Cardio, Blood Pressure, Pulse, Oxygen Saturation, Body Composition (Fat Rate, Body Water Rate , Basal Metabolism, Body Fat Mass, Body Water Content, Body Shape), Waistline, Hip Circumference, Waist hip ratio, Vision, Blood glucose, Uric acid, Four tests of blood lipids (High density lipid cholesterol, low density lipid cholesterol, Total cholesterol, Triglyceride), TCM physique test
SKU: K5-Series
Product specifications
Manageability

Ultrasonic height & weight module:

Weight range:5-200KG,Accuracy ±0.1KG, Precision balanced beam pressure sensor

Height range:70-200CM,Accuracy±0.5CM, High precision sensor



Automatic electronic blood pressure monitor:

  • Measuring principle: pulse wave method
  • Display mode: LED digital display
  • Measuring range: pressure 0 ~ 300mmHg (0 ~ 40) kPa, pulse 40 times / min ~ 180 times / min
  • Accuracy: Pressure: Within ±2mmHg (±0.267kPa), pulse rate: within ±2%
  • Monitoring the changes of blood pressure and judging whether it is an important reference for hypertension & hypotension.

Blood Oxygen meter:

Measurement range: 70-100% (±2% normal state, ±3% exercise or weak perfusion, not defined with 70% or less); detection of pulse rate, oxygen saturation, perfusion index (PI), which is important for respiratory cycle Physiological parameter.

Infrared thermometer:

Infrared thermometer, measuring range: (in vivo mode): 32.0 ° C -42.5 ° C, accurate test: ± 0.2 ° C, test site: forehead, hand socket, back of the ear.

Electrocardiograph:
The six-lead and twelve-lead measurements can be switched freely.

Blood glucose, uric acid, cholesterol Multifunction analyzer:

  • Standard resistance strip test;
  • Display mode: mmol/Lx display and test time display;
  • Test blood sugar, uric acid, total cholesterol
  • USB data upload

Blood lipid meter:

  • Test items: total cholesterol, high density lipoprotein, triglyceride, low density lipoprotein
  • Detection time: 90 seconds (4 items)

Body fat measuring module:

  • Display parameters: body composition indicators such as fat content
  • Body type judgment: weight loss / standard / recessive / robust / obese
  • Measurement method: bioelectrical impedance method
  • Measurement time: within 15 seconds

Waist circumference measuring ruler:

Measurements, accuracy 1mm

Electronic vision test system

Electronic vision test, remote measurement operation

TCM Constitution Identification System

Determining the bias of a specific individual's personality

There are health guidance content for biased physique.

Targeted guidance for different personal physiques







Physical

Embedded PC:
Quad-core 2.0GHz CPU with Turbo to 2.41GHz, 2MB cache
1×SATA, 1× mSATA SSD interface
Graphics card: VGA+LVDS(eDP) HDMI® + LVDS(eDP) VGA+HDMI® synchronous, asynchronous dual display
Support watchdog, PXE boot, Wake on LAN, Auto power on, RTC boot up

Control Panel:
Highly integrated and integrated design, embed all modules into the terminal to become a whole;
Device installation and deployment is simple, just plug in the power and network to start working
Install the moving wheel with mobile function

Touch display:
Size: 15.6 inch 16:9
Capacitive touch Resolution 1920 (H) *1080 (V)
Pixel spacing 0.17925(H) 0.17925(V)

HD display:
Size: 23.8 inch 16:9
Resolution 1920 (H) *1080 (V)

ID card reader:
Comply with the general technical requirements of the resident ID card reader, compatible with ISO14443 (TypeB) standard; using non-contact IC card technology, connected with computer or other equipment can be used to read relevant information in the chip for resident ID card

Printer:
Laser printer, printable medical report

Software

The self-documenting system automatically generates a health-check file by swiping a card or scanning a QR code to connect to the back-end database.

Self-services integrated control, each test equipment through system control measurement and data upload or e-mail for analysis.

Self-services query statistics, physical examination data can be queried at any time, according to the type of project, user information and other conditions for statistical file information.

The K5 health check operating system would be turned on by swiping or scanning the card number, and the voice instruction prompts operator or user to operate each function check processing.

Physical check results display and view:
The check results are displayed on the display and uploaded to the back-end database system. The measurer can view historical measurement data through mobile terminals, computers, etc.

Data interface setting:
The data upload service address is set autonomously, and the data is uploaded to the designated data server in real time through the http communication protocol data. Equipped with a high-definition camera, the camera can automatically take pictures after startup.

Data statistics:
powerful data processing and statistical functions, and can generate corresponding statistical reports, pie charts, etc., to facilitate the screening and statistics of residents' health data. According to gender, age, project, etc., the data can be queried and screened to provide accurate data statistics for the management.

Health assessment:
Health data forms a trend graph of health data, alerts you to abnormal results, and gives health guidance advice. Users can be aware of their physical condition. Managers can manage health care for testers. API and Software Upgrades are available via local or remote supports.

Network Support LAN and Wifi
Power

AC 220V/50Hz, Power Consumption: 100W.

Dimensions

62.9(L)*23.6(W)* 90.5(H) Inch, Net Weight: 150kg.

Application

Public health services, clinics, community health services center, medical and health check center, health management service, labs, club-house, seniors services center, VIP room, school, driving school, Gym, etc.

*
*
*
