Booksize ii-Series

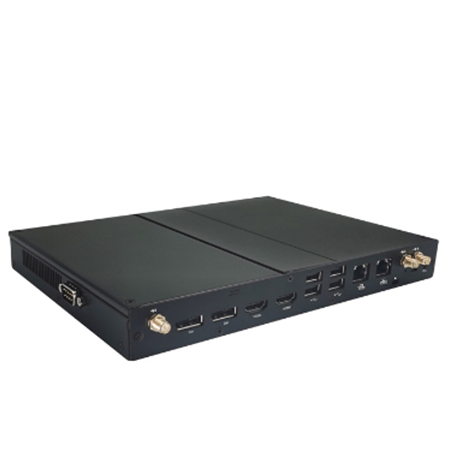

1.1" Slim Booksize-ii Mini PC
  Featured Highlights
9.45"(W) x 6.83"(D) x 1.1"(H) / Fanless version: 9.45"(W) x 6.83"(D) x 1.3"(H)
For Booksize-ii MB with Slim blower, Optional Fanless SKU available.
Supports u-series Core i7/i5/i3/Pentium/Celeron Mobile CPU configurations
7mm-15mm 2.5" HD/SSD Drive Bay
DC12/19V 36W-120W Power in
Supports VESA, wall mount as well for 1U Multiple System tray.
Color: Black or Silver  as default color, custom colors available with special order
 Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.
SKU: Booksize-ii
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio

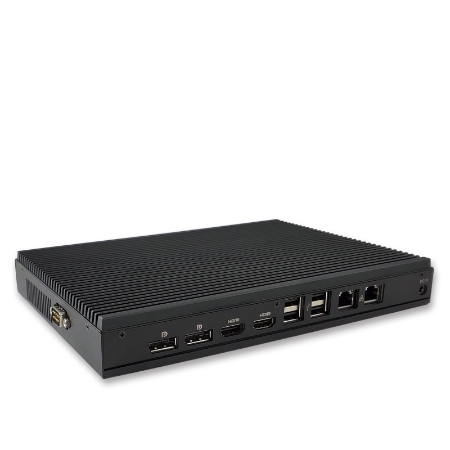

U11FL2 i7-1180G7 Tiger Lake-u 2 DDR4SO Intel Iris Xe 1 Intel\i211+1 Intel\i219 1 1 2 R+4 F 2 R 2 DP+2 HDMI2.0 1 MinPCIe TPM 7.1 ALC897
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 2-8 2 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
V1807B-4HDMI V1807B AMD V1000 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 1-8/4 1 1 R 2 F+1 R 4 HDMI2.0 MiniPCIe
G302F/G303 i5-4200u Haswell-u 2 DDR3SO Nvidia GT730/GT630 1 Realtek 1 2 R+1 H 1 DP+2 HDMI MiniPCIe 5.1 ALC662
