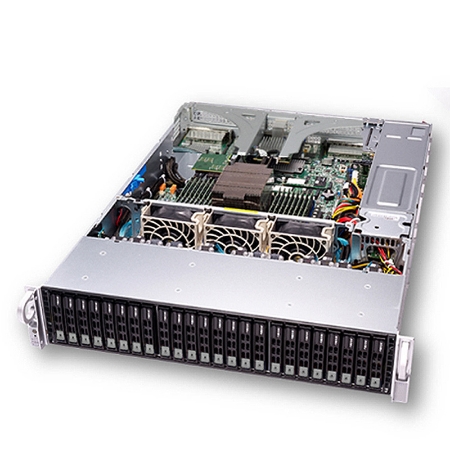

2U4P-24N48-4189A

2U Quad-Socket P+, 24x U.2/SATA/SAS Hot Swap, 48x 8-Channel DDR4, 3rd Gen. Scalable Xeon®

Key Features:

• Quad-Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 2U 24 x 2.5” NVMe U.2 4.0 / SATA/SAS Hot Swap Drives
• 48 DDR4 up to 12/18TB 8-Channel Intel® Optane™ Memory
• 4 PCIe x16, 6 PCIe x8 Slots
• 4 x 10Gbit Ethernet (2 x RJ45, 2 x SFP+), IPMI 2.0
• 1 x OCP 3.0 PCIe 4.0 x16 for 2x100G QSFP28
• 2000W Titanium Redundant Power Supply
• For HPC, Compute Server, Database Server, AI Computing, etc.

Download DataSheet

$0.00

SKU: 2U4P-24N48-4189A, SYS-240P-TNRT

Qty:

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Quad 3rd Generation Intel® Scalable Xeon® • Socket P+ (LGA 4189), supports 250W, Up to 28 Core 56 Threads Chipset • Intel® C621x
Memory • 48 DDR4 DIMM Sockets • 8-channel memory bus per processor • Supports up to 12TB ECC DDR4 3200MHz RDIMM • Supports up to 18TB Intel® Optane™ persistent memory 200 series Storage • 24 x 2.5” NVMe U.2 PCIe 4.0 / SATA / SAS* Hot Swap Bays • Optional* Broadcom 3108/3808/3816/3916 for SAS (12Gb/s) • 2 x M.2-2280 NVMe / SATA Slots
Network • 2 x 10GbE BaseT RJ45, 2 x 10GbE SFP+ with Intel® X710-TM4 • 1 x OCP 3.0 (PCIe 4.0 x16) for Network Modules • Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28 • RJ45 Gigabit LAN for IPMI 2.0 by AST2600 • Additional LAN or InfiniBand by PCIe add-on cards Expansion Slot • 4 x PCIe 4.0 x16 (Full Height) • 6 x PCIe 4.0 x8 (2 FHFL, 4 Optional Low Profile)
Back I/O • 1 x RJ45 IPMI • 2 x RJ45 Ethernet, 2 x SFP+ Ethernet • 1 x DB15 VGA, 2 x USB 3.0, 1 COM Internal I/O • 1 x TPM Header
BIOS • AMI® • Watchdog Supported Chassis • 2U Rackmount • 24 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimension: 3.5" (89mm) H x 17.3" (439mm) W x 31.6" (803mm) D • System Weight: 46 lbs. (21kg) Net, 72 lbs. (33kg) Gross
Power Supply • 2000W (1+1) Redundant Titanium Level with PMBus • 1000W: 100-127Vac / 2000W: 220-240Vac Input OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • HPC, Compute Server, Database Server, AI Computing. Environment • Operating Temperature: 0 to +35 C • Non-operating Temperature: -40 to +60 C • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance

Base System *
Processor *
Memory
HardDrive0
HardDrive2
Networking *
O/S *
Service *

Your name *

Your email *

Inquiry *

Product specifications

Processor • Quad 3rd Generation Intel® Scalable Xeon® • Socket P+ (LGA 4189), supports 250W, Up to 28 Core 56 Threads Chipset • Intel® C621x
Memory • 48 DDR4 DIMM Sockets • 8-channel memory bus per processor • Supports up to 12TB ECC DDR4 3200MHz RDIMM • Supports up to 18TB Intel® Optane™ persistent memory 200 series Storage • 24 x 2.5” NVMe U.2 PCIe 4.0 / SATA / SAS* Hot Swap Bays • Optional* Broadcom 3108/3808/3816/3916 for SAS (12Gb/s) • 2 x M.2-2280 NVMe / SATA Slots
Network • 2 x 10GbE BaseT RJ45, 2 x 10GbE SFP+ with Intel® X710-TM4 • 1 x OCP 3.0 (PCIe 4.0 x16) for Network Modules • Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28 • RJ45 Gigabit LAN for IPMI 2.0 by AST2600 • Additional LAN or InfiniBand by PCIe add-on cards Expansion Slot • 4 x PCIe 4.0 x16 (Full Height) • 6 x PCIe 4.0 x8 (2 FHFL, 4 Optional Low Profile)
Back I/O • 1 x RJ45 IPMI • 2 x RJ45 Ethernet, 2 x SFP+ Ethernet • 1 x DB15 VGA, 2 x USB 3.0, 1 COM Internal I/O • 1 x TPM Header
BIOS • AMI® • Watchdog Supported Chassis • 2U Rackmount • 24 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimension: 3.5" (89mm) H x 17.3" (439mm) W x 31.6" (803mm) D • System Weight: 46 lbs. (21kg) Net, 72 lbs. (33kg) Gross
Power Supply • 2000W (1+1) Redundant Titanium Level with PMBus • 1000W: 100-127Vac / 2000W: 220-240Vac Input OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • HPC, Compute Server, Database Server, AI Computing. Environment • Operating Temperature: 0 to +35 C • Non-operating Temperature: -40 to +60 C • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
