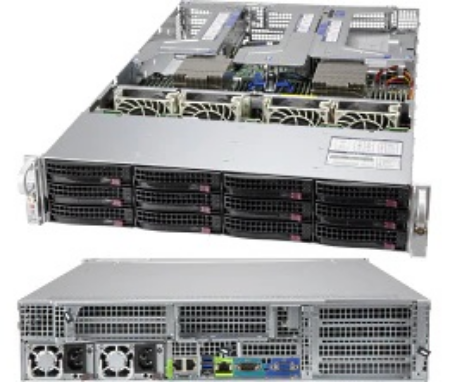

2U12S32-E7003

2U 12x3.5” SATA3, 32DIMM 2LAN, 4PCIe, Dual 3rd Gen. EPYC™

Key Features:

• Dual AMD EPYC™ 7003/7002 Series Processors
• 2U 12 x 3.5” SATA3 Hot Swap Drives
• 32 DDR4 up to 8TB 8-Channel 3200MHz ECC Memory
• 2 RJ45 10Gbit Ethernet, IPMI 2.0
• 3 PCIe 4.0 x16 Slots, 1 PCIe 4.0 x8 Slot
• 1600W Titanium Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud

Download DataSheet

Start at Call for pricing Options(800-999-1278)
SKU: 2U12S32-E7003, AS-2024US-TRT
Product specifications
Processor
• Dual AMD EPYC™ 7003/7002 Series Processors
• Socket SP3 (LGA 4094) supports 280W, Up to 64 Core 128 Threads
Memory
• 32 x DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
Storage
• 12 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays
• Optional 8 x SATA3 (6Gb/s) + 4x NVMe or 12 x SAS3 via kit
• Optional 2 x M.2-2280 PCIe 3.0 x4 NVMe Slots (by Add-on Card)
• 2 x SATA-DOM (Disk on Module)
Network
• 2 x Intel® X710-AT2 10GbE BaseT LAN RJ45
• RJ45 Gigabit LAN for IPMI 2.0 by AST2500
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 3 x PCIe 4.0 x16 (2 Full Height 10.5"/9.5" L), 1 Low Profile)
• 1 x PCIe x8 (Full Height 9.5" L in x16)
Graphics
• Aspeed AST2500 BMC VGA (DB15)
Back I/O
• 1 x RJ45 IPMI
• 2 x RJ45 Ethernet
• 1 x DB15 VGA
• 1 x RS-232 COM
• 2 x USB 3.0
Internal I/O
• 1 x TPM Header
• 3 x USB 3.0 (2 x Headers + 1 x Type A)
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U Rackmount with Front UID LED
• 12 x 3.5” SATA3 Hot Swap Drive Bays
• 4 x 8cm PWM Cooling Fans
• Dimension: 3.5" (89 mm) H x 17" (437 mm) W x 28.5" (724 mm) D
• System Weight: 36 lbs. (16.4 kg) Net, 72 lbs. (32.7kg) Gross
Power Supply
• 1600W (1+1) Redundant Titanium Level with PMBus
• 1000W: 100-127Vac / 1600W: 200-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment

• Operating Temperature: 10 to +35 C
• Non-operating temperature: -40 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
