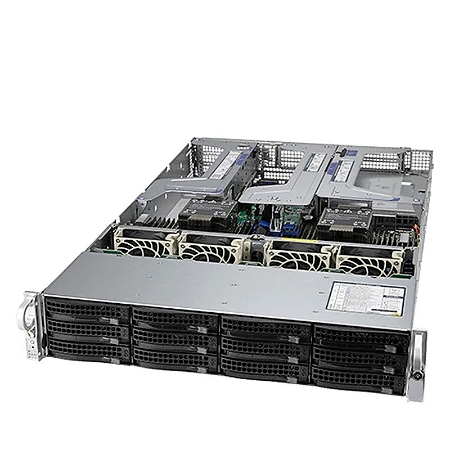

2U12S32-4189A

2U 12x 3.5” NVMe/SATA, 32x 8-Channel DDR4 2/4xLAN, 8PCIe 4.0 Expansion Slots, Dual Ice Lake Xeon®

Key Features:

• 2U 12 x 3.5” NVMe U.2 4.0 / SATA/SAS Hot Swap Drives
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 32 DDR4 up to 12TB 8-Channel Intel® Optane™ Memory
• 2 PCIe 4.0 x16 Slots, 5 PCIe 4.0 x8 Slots, PCIe 4.0 x8 Internal Slot
• 2 10GbE RJ45 or 2 10GbE RJ45 + 2 10GbE SFP+, IPMI 2.0
• 1200W Titanium Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud, etc.

Download DataSheet

Start at Call for pricing Options(800-999-1278)
SKU: 2U12S32-4189A, SYS-620U-TNR
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon®
• Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads
Chipset
• Intel® C621A
Memory
• 32 x DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
• Supports up to 12TB Intel® Optane™ Persistent Memory 200 series
GPU
• Aspeed AST2600 BMC VGA (DB15)
Storage
• 12 x 3.5” SATA/ NVMe*/ SAS** Hot Swap Bays
• Optional* Additional parts required for NVMe
• Optional** Broadcom® 3108/3808/3816/3916 for SAS (12Gb/s)
• 2 x SATA-DOM (Disk on Module)
Network
• Gigabit LAN for IPMI 2.0 by AST2600
• Optional 2 x Intel® X710-AT2 10GbE BaseT RJ45 LAN or 4 x Intel® X710-TM4 10GbE (2 x BaseT RJ45 + 2 x SFP+)
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 1 x PCIe 4.0 x16 (Full Height 10.5” L)
• 1 x PCIe 4.0 x16 (Low Profile)
• 5 x PCIe 4.0 x8 (Full Height 10.5” L)
• 1 x PCIe 4.0 x8 (Internal Low Profile)
Back I/O
• 1 x RJ45 IPMI
• 1 x DB15 VGA
• 2 x USB 3.0
• 1 x RS-232 COM
Internal I/O
• 2 x USB 3.0 Headers
• 1 x TPM Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U Rackmount with Front UID button/ Status LED
• 12 x 3.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays
• 4 x 8cm Cooling Fans
• Dimension: 3.5" (89mm) H x 17.2" (437mm) W x 28.5" (724mm) D
• System Weight: 35.5 lbs. (16.2kg) Net, 57.5 lbs. (26.2kg) Gross
Power Supply
• 1200W (1+1) Titanium Redundant with PMBus
• 800W: 100-127Vac / 1200W: 200-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment
• Operating Temperature: 10 to +35 C
• Non-operating Temperature: -40 to +60 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
