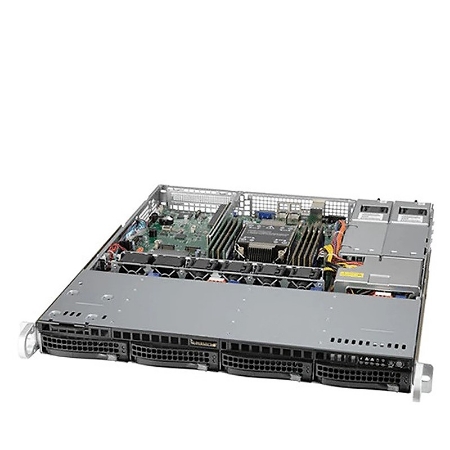

1U4S8-4189A

1U 4x3.5” NVMe/SATA/SAS, 8 DIMM 2 LAN, PCIe x16, Ice Lake Xeon®

Key Features:

• 1U 4 x 3.5” NVMe/ SAS/ SATA Hot Swap Drives
• Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processor
• 8 DDR4 up to 3TB 8-Channel Intel® Optane™ Memory
• PCIe 4.0 x16 Slot
• 2 Gigabit LAN with IPMI 2.0
• 400W Platinum Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud, etc

Download DataSheet

Start at Call for pricing Options(800-999-1278)
SKU: 1U4S8-4189A, SYS-510P-MR
Product specifications
Processor
• 3rd Generation Intel® Scalable Xeon® (Ice Lake Family)
• Socket P+ (LGA 4189), supports 220W, up to 40 Core 80 Threads
Chipset
• Intel® C621A
Memory
• 8 x DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 2TB ECC DDR4 3200MHz RDIMM
• Supports up to 3TB Intel® Optane™ Persistent Memory 200 series
GPU
• Aspeed AST2600 BMC VGA (DB15)
Storage
• 4 x 3.5” SATA/ NVMe/ SAS* Hot Swap Bays
• Intel® C621A NVMe, SATA3 (6Gb/s) RAID-0/1/5/10
• Optional* Broadcom® 3108/3808/3816/3916 for SAS (12Gb/s)
• 2 x M.2-2280/22110 for NVMe/ SATA RAID-0/1
• 2 x SATA-DOM (Disk on Module)
Network
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600 BMC
• 2 x 1GbE BaseT RJ45 LAN from Intel® i350
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 1 x PCIe 4.0 x16 (Full Height Half Length)
Back I/O
• 1 x RJ45 IPMI
• 2 x RJ45 1GbE LAN
• 1 x DB15 VGA
• 1 x RS-232 COM
• 2 x USB 3.2 Gen 1
• 2 x USB 2.0
Internal I/O
• 3 x USB 3.2 Gen 1 (2 x Headers + 1 x Type A)
• 4 x USB 2.0 Headers
• 1 x RS-232 COM Header
• 1 x TPM Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 1U Rackmount
• 4 x 3.5” NVMe/ SAS/ SATA Hot Swap Drive Bays
• 4 x 4cm PWM Cooling Fans
• Dimension: 1.7" (43 mm) H x 17.2" (437 mm) W x 19.98" (507 mm) D
• System Weight: 17.6 lbs. (8 kg) Net, 30.4 lbs. (13.8kg) Gross
Power Supply
• 400W (1+1) Redundant Platinum Level with PMBus
• 240V AC and DC Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment
• Operating Temperature: 10 to +35 C
• Non-operating Temperature: -40 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
