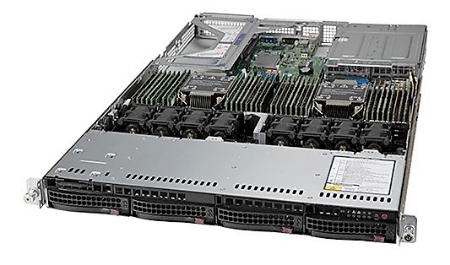

1U4S32-4189A

1U 4x 3.5”/2.5” Bays, 32x DIMM 2/4x10GbE, 4 PCIe 4.0 x16 Slots, Dual Ice Lake Xeon®

Key Features:

• 1U 4 x 3.5” NVMe/ SAS/ SATA Hot Swap Drives
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 32 DDR4 up to 12TB 8-Channel Intel® Optane™ Memory
• 4 PCIe 4.0 x16 Slots (2 x FH + 1 x LP + 1 x Internal)
• 2x10GbitE or 2x10GbE+2x10G SFP+, IPMI 2.0
• 1200W Titanium Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud

Download DataSheet

Start at Call for pricing Options(800-999-1278)
SKU: 1U4S32-4189A, SYS-610U-TNR
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon® (Ice Lake Family)
• Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads
Chipset
• Intel® C621A
Memory
• 32 x DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
• Supports up to 12TB Intel® Optane™ persistent memory 200 series
GPU
• Aspeed AST2600 BMC VGA (DB15)
Storage
• 4 x 3.5” SATA/ NVMe*/ SAS* Hot Swap Bays
• Optional Additional 2 x 2.5” 7mm SATA SSD front drive bays
• CPUs + C621A 4 NVMe (16GT/s), 8 SATA (6Gb/s) RAID-0/1/5/10
• Optional* Broadcom® 3108/3808/3816/3916 for SAS (12Gb/s)
• 2 x SATA-DOM (Disk-On-Module) Connectors
Network
• Optional 2 x Intel® X710-AT2 10GbE BaseT RJ45 LAN or 4 x Intel® X710-TM4 10GbE (2 x BaseT RJ45 + 2 x SFP+)
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600 BMC
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 2 x PCIe 4.0 x16 Full Height 10.5” L
• 1 x PCIe 4.0 x16 Low Profile
• 1 x PCIe 4.0 x16 Internal Low Profile
Back I/O
• 1 x RJ45 IPMI
• 1 x DB15 VGA
• 1 x RS-232 COM
• 2 x USB 3.0
Internal I/O
• 2 x USB 3.0 Headers
• 1 x TPM Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 1U Rackmount with UID button/ LED
• 4 x 3.5” NVMe/ SAS/ SATA Hot Swap Drive Bays
• Optional Slim DVD/FDD or additional 4x2.5” 7mm SATA SSD bays
• 8 x 4cm Cooling Fans
• Dimension: 1.7" (43 mm) H x 17.2" (437 mm) W x 29.7" (754 mm) D
• System Weight: 29.5 lbs. (13.4 kg) Net, 44.5 lbs. (20.2kg) Gross
Power Supply
• 1200W (1+1) Redundant Titanium Level with PMBus
• 800W: 100-127Vac / 1200W: 200-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment
• Operating Temperature: 0 to +35 C
• Non-operating Temperature: -40 to +6
• Operating Temperature: 10 to +35 C
• Non-operating Temperature: -40 to +60 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance0 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
