 Think Big. Go Small. Eco-Smart Computing

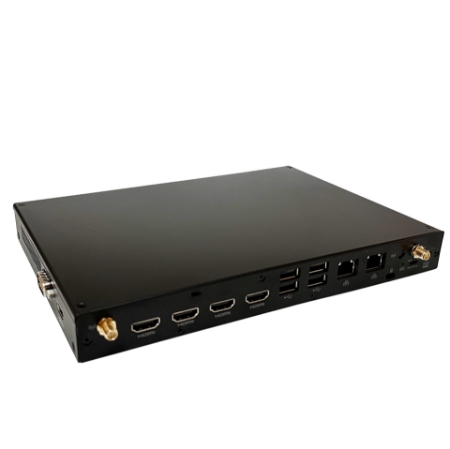

U12L2 - Rugged Mini Media Player for Digital Signage PC

12th/13th Gen. Iris® Xe 8K GPU 4 Display, 3 HDMI+1DP out or 4 HDMI out + 1 HDMI in, 3 M.2 Slots vPro supported, 2 LAN+RS232/RS485+SIM
Featured Highlights
  Intel® Core™ i7/i5/i3/Celeron®/Pentium® Processor
  Intel® Alder/Raptor Lake-u/p Platform (SOC)
  Intel® Iris® Xe Graphics, DP+3 HDMI or 4 HDMI + Input
  2 DDR5 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2 SSD/NVMe
  2.5Gigabit+Gigabit LAN, M.2 WiFi+M.2 5G/4G-LTE
  2 USB 3.0, 6 USB 2.0, Type-C
  5.1 ALC662-VD0 Audio Sound
  DC12V or DC19V 60W Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10, IoT, Linux
  Applications: Digital Signage, Media Player, Videowall, Network Security, POS/Kiosk, Edge AI, Edge Computing, Deep Learning OpenVino, Audio/Video PC, Set Top Box, etc.

SKU: U12L2

U12L2

is a Embedded mini Media Player for Digital Signage, it features with 12th Gen. Alder Lake, Iris® Xe 8K GPU 4 Display, 3 HDMI® 2.1+DP 1.4, 2 LAN+RS232/RS485+SIM, up to 64GB Memory. This Embedded Longevity System is Perfect Media Player for Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, Mini PC, Slim PC, Industrial PC, Internet of Things and Form Factor PC. This is Great High-Performance Rugged Alder Lake 8K Mini Digital Signage Player. Supports vPro

Product specifications
Processor

• Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W (vPro)
• Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W (vPro)
• Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W (vPro)
• Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W
• Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W (vPro)
• Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W (vPro)
• Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W
• Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W
• Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W
• Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W

Option:

• 13th Generation Intel® Core™ Raptor Lake u/p series
• Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U
• Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U
• Intel® Core™ i3-1315U, i3-1305U, i3-1315U

Chipset
• Intel® Alder Lake-u/p Platform (SOC)
Graphics

• Intel® Iris® Xe or 12th Gen UHD Graphics
• Support 4 Display
• 1 x DP 1.4 8K 60Hz Graphics port (Optional HDMI 2.1)
• 3 x HDMI® 2.1 4K 60Hz Graphics ports
• Optional 1 x HDMI® -in (when configured with IPU processor)

Memory

• 2 x DDR5 SO-DIMM
• 4800MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® I226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3042/3052 (for 5G/4G-LTE Module Pair with SIM Card)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3042/3052 (for 5G/4G-LTE Module Pair with SIM Card)
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)

Audio

• Realtek® ALC662-VD0 6-channel 5.1 (Optional ALC897-GR 7.1)
• 2 x 3.5mm Analog Stereo Audio jacks (For Microphone and Audio-Out)

Back Panel I/O

• 4 x USB 2.0 ports
• 1 x DP 1.4
• 3 x HDMI® 2.1 ports
• 2 x LAN ports
• 1 x DC-In Power Connecter

Other I/O

• 2 x USB 2.0 ports (Front/White)
• 2 x USB 3.2 ports (Front/Black)
• 1 x Type-C USB 3.2 port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) (Front)
• 2 x 3.5mm Audio jacks (Front)
• 1 x RS232 Serial COM port (Side)
• 1 x Optional RS232/RS485 Serial COM port (Side)

Function

• Support TPM 2.0

System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
Chassis

• Booksize-iF Slim Fanless enclosure 9.25"(W) x 6.8"(D) x 1.3"(H) (235 x 173 x 33mm)
• Booksize ii-Series: Slim version with blower Fan 9.25"(W) x 6.8"(D) x 1.1"(H) (235 x 173 x 28mm)
• Net Weight: 3lb (net) 6 lb.(gross with packaging)
• Color: Black (other color and custom logo are available with MOQ orders)

Power Supply

• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, IoT, Linux

Application

• Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
